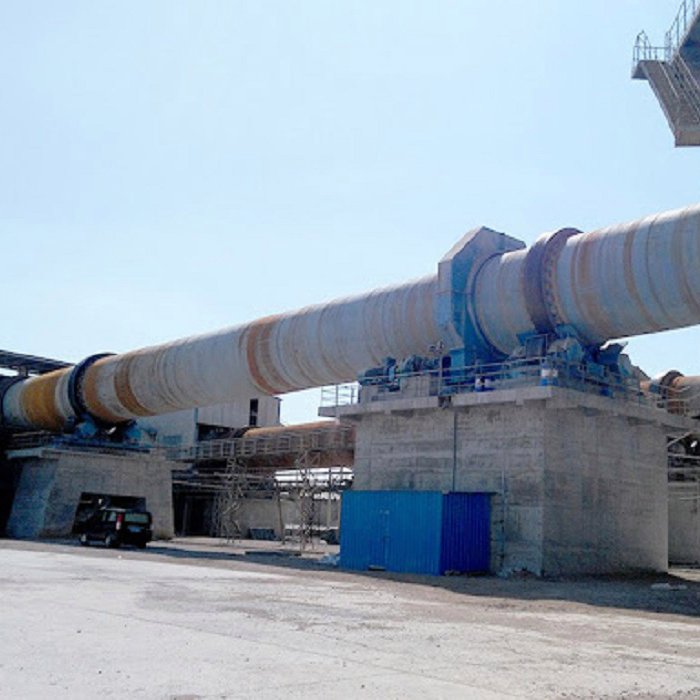

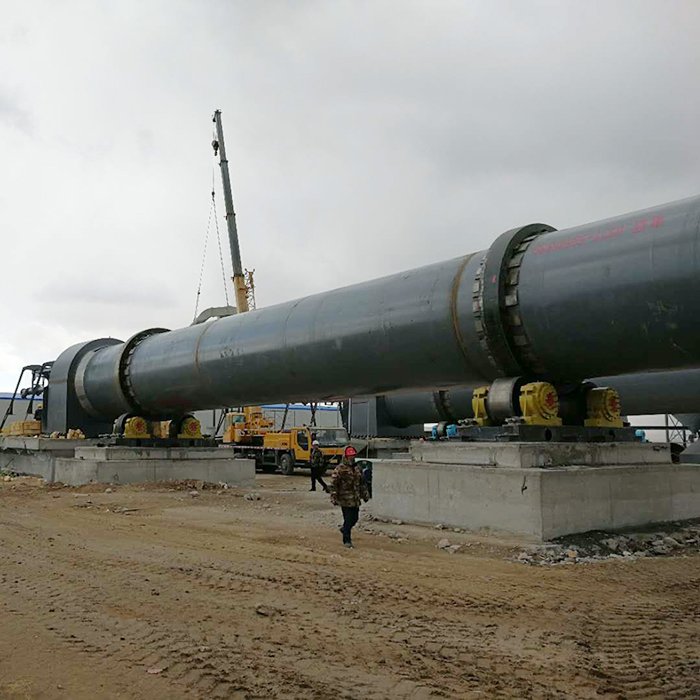

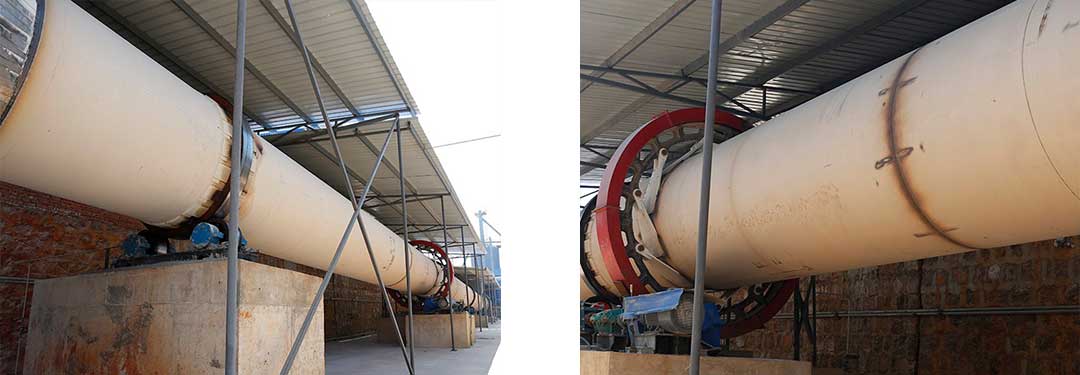

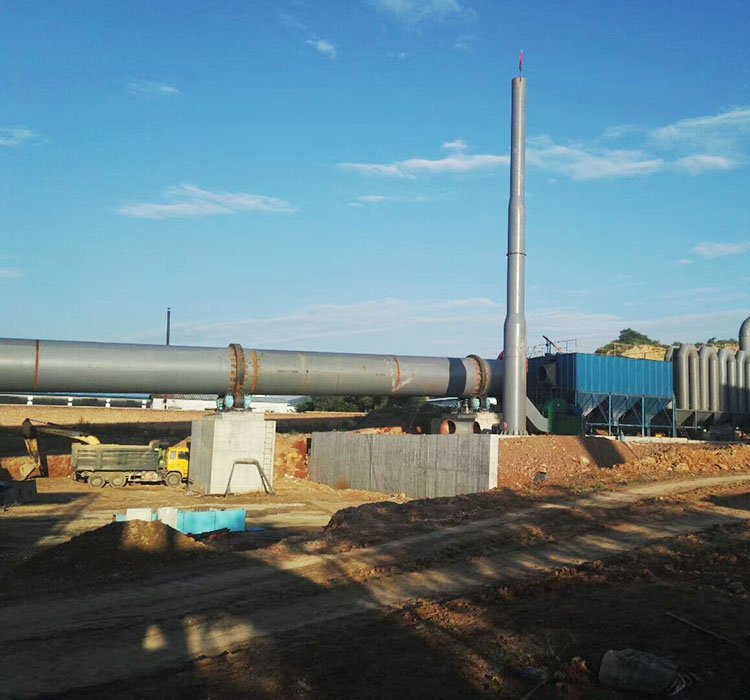

Zinc Oxide Rotary Kiln
Product Specification:
Production Capacity:
Product Description
Feature
Working principle
Specification
We are a professional rotary kiln manufacturer in China, providing flowchart and installation service. According to different fuels, rotary kiln can be classified into gas-fired rotary kiln, oil-fired rotary kiln and coal-fired rotary kiln. It is widely used for different materials with a processing capacity of 180-1, 000 tons per day, a dimension ofφ2.5×40m-φ4.8×68m and cement production capacity of 50-1000t/d, being easy to operate and durable in use.
1. After adding active Zinc Oxide rubber, can make the rubber has good wear resistance, tear resistance and elasticity.
2. Zinc Oxide as a white pigment. Because has good activation properties of activated zinc oxide, in the rubber product has been more and more widely used, such as in V type belt can not only instead of amount of ordinary zinc oxide and can be reduced to 1 / 2 – 1 / 3 the amount of the rubber performance and stability, curing performance is not affected, reduce the production cost.
3. Fine grained Zinc Oxide can be used as a medicine.
4. due to zinc oxide on the UV absorption ability strong, the people are used to paint, printing ink, varnished cloth color, printing and dyeing industrial printing materials, in the match industry for neutralization oxhide glue acidity and increase the adhesive effect, the pharmaceutical industry is used as a raw material for plaster. Also used in paint.
5. Zinc Oxide is also used in the field of pressure – sensitive, photo catalysis, photoelectric pole, paint, color TV, etc..
Crusher motor driven crushing high-speed rotating rotor cavity. From the upper nozzle material feedback to the machine, the impact of hammer impact shear grinding and high grinding speed. In the lower part of the rotor equipped with the sieve plate, the grain size of the grinding material is smaller, and the size of the sieve leakage through the screen is larger than that of the coarse particle size. The resistance of the sieve leakage is larger than that of the coarse particle size. It is left in the sieve plate to continue the hammer impact grinding, and finally discharged out of the machine through the sieve plate.
| Product specifications(m) | Kiln dimensions | Capacity(t/d) | Rotation speed(r/min) | Motor power(kw) | Total weight(t) | Note | ||
| Diameter(m) | Length(m) | Obliquity(%) | ||||||
| Φ2.5×40 | 2.5 | 40 | 3.5 | 180 | 0.44-2.44 | 55 | 149.61 | Kiln with shaft cyclone preheater |
| Φ2.5×50 | 2.5 | 50 | 3 | 200 | 0.62-1.86 | 55 | 187.37 | ---- |
| Φ2.5×54 | 2.5 | 54 | 3.5 | 204 | 0.48-1.45 | 55 | 196.29 | ---- |
| Φ2.7×42 | 2.7 | 42 | 3.5 | 320 | 0.10-1.52 | 55 | 198.5 | ---- |
| Φ2.8×44 | 2.8 | 44 | 3.5 | 400 | 0.437-2.18 | 55 | 201.58 | Outside disassemble kiln |
| Φ3.0×45 | 3 | 45 | 3.5 | 500 | 0.5-2.47 | 75 | 210.94 | ---- |
| Φ3.0×48 | 3 | 48 | 3.5 | 700 | 0.6-3.48 | 100 | 237 | Outside disassemble kiln |
| Φ3.0×60 | 3 | 60 | 3.5 | 300 | 0.3-2 | 100 | 310 | Alumyte-alumina forge kiln |
| Φ3.2×50 | 3.2 | 50 | 4 | 1000 | 0.6-3 | 125 | 278 | Outside disassemble kiln |
| Φ3.3×52 | 3.3 | 52 | 3.5 | 1300 | 0.266-2.66 | 125 | 283 | Kiln with preheater precalcine |
| Φ3.5×54 | 3.5 | 54 | 3.5 | 1500 | 0.55-3.4 | 220 | 363 | Kiln with preheater precalcine |
| Φ3.6×70 | 3.6 | 70 | 3.5 | 1800 | 0.25-1.25 | 125 | 419 | Generating kiln for using ofterheat |
| Φ4.0×56 | 4 | 56 | 4 | 2300 | 0.41-4.07 | 315 | 456 | Kiln with preheater precalcine |
| Φ4.0×60 | 4 | 60 | 3.5 | 2500 | 0.396-3.96 | 315 | 510 | Kiln with preheater precalcine |
| Φ4.2×60 | 4.2 | 60 | 4 | 2750 | 0.4-3.98 | 375 | 633 | Kiln with preheater precalcine |
| Φ4.3×60 | 4.3 | 60 | 3.5 | 3200 | 0.396-3.96 | 375 | 583 | Kiln with preheater precalcine |
| Φ4.5×66 | 4.5 | 66 | 3.5 | 4000 | 0.41-4.1 | 560 | 710.4 | Kiln with preheater precalcine |
| Φ4.7×74 | 4.7 | 74 | 4 | 4500 | 0.35-4 | 630 | 849 | Kiln with preheater precalcine |
| Φ4.8×74 | 4.8 | 74 | 4 | 5000 | 0.396-3.96 | 630 | 899 | Kiln with preheater precalcine |
| Φ5.0×74 | 5 | 74 | 4 | 6000 | 0.35-4 | 710 | 944 | Kiln with preheater precalcine |
| Φ5.6×87 | 5.6 | 87 | 4 | 8000 | Max4.23 | 800 | 1265 | Kiln with preheater precalcine |
| Φ6.0×95 | 6 | 95 | 4 | 10000 | Max5 | 950×2 | 1659 | Kiln with preheater precalcine |
Through technological innovation, the cement Rotary kiln calcination system equipment adopts domestic and foreign advanced technologies such as hydraulic retaining wheel device, metering plunger pump with high metering accuracy, high-precision speed regulating valve and contact graphite block sealing device.
